GODEX THERMAL TRANSFER INDUSTRIA PRINTER

R12600,00

Pay over 3 EQUAL zero-interest instalments of R4200,00 with PayJustNow.
Find out how...

PayJustNow is a simple, easy-to-use payment system.

Here’s how it works:

PayJustNow allows you to pay for your purchase over 3 equal, zero interest instalments. You’ll pay one instalment at the time of purchase, the next at the beginning of the following month and the last one a month thereafter.
#zerointerest

Step 1:

Browse your favourite online stores and proceed to check-out.

Step 2:

Choose PayJustNow as your payment method.

Step 3:

Create your account as easily as if your eyes were shut (though we’d recommend you keep them open).

Step 4:

Complete your purchase and whoop for joy!

Here’s what you’ll need:

  A valid RSA ID document

  To be over 18 years old

  An email address

  A SA Bank issued debit or credit card

Buy Now Compare
Availability: In Stock

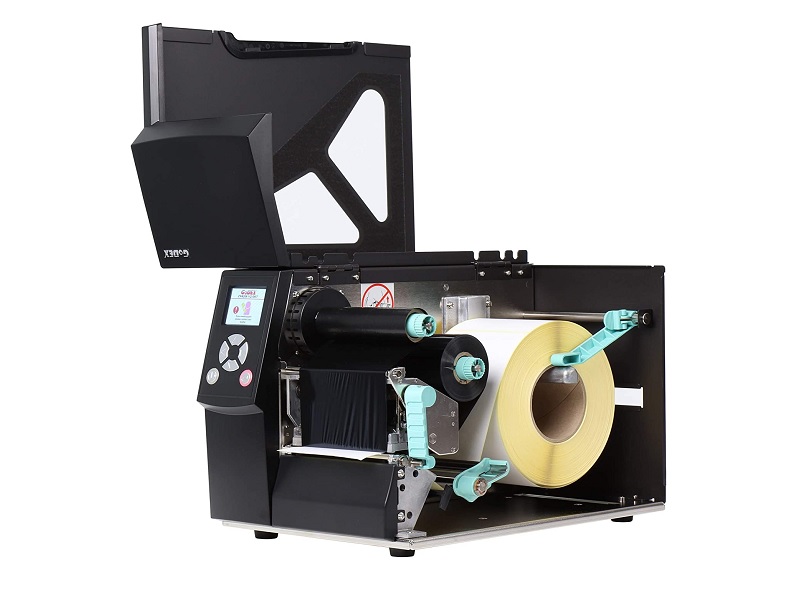

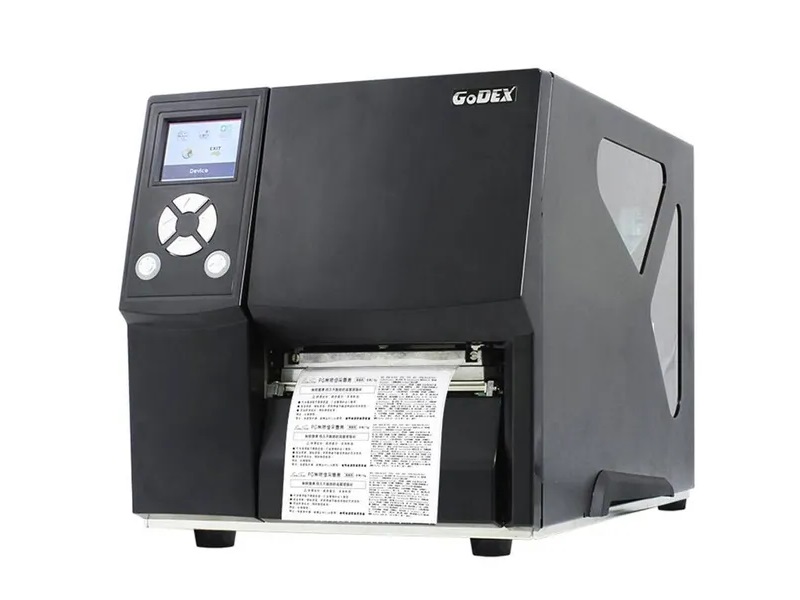

GoDEX ZX420i Thermal Transfer Industrial Printer
GODEX 01142i002000

USB2.0, USB host, Serial & parallel port, Ethernet, optional WIFI & Bluetooth module for multiple applications.
32 MB SDRAM and 128 MB Flash memory including 60 MB available for user.
Wide range media type supporting
203 dpi (8 dots/mm) resolutions; print speed is up to 6″/150 mm per second.
Supports 450 meter ribbon and 8 inch diameter label (3″core) available for bulk printing.
Free GoLabel label design software.

Specifications
Print Method
Thermal Transfer / Direct Thermal

Resolution
203 dpi (8 dots/mm)

Print Speed
6 ips (152 mm/s)

Print Width
4.25″ (108mm)

Print Length
Min. 0.16” (4 mm) ; Max . 157.44” ( 3999mm)

Processor
32bit RISC CPU

Memory
Flash 128 MB Flash (60 MB for user storage)
SDRAM 32 MB

Sensor Type
Adjustable reflective sensor and transmissive sensor, left aligned

Media
Type Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width
Tear : Min. 1” (25.4 mm) – Max. 4.64” (118 mm)
Cutter : Max. 4.61” (117 mm)
Dispenser / Rewind : Max. 4.64” (118 mm)
Thickness Min. 0.003” (0.076 mm) – Max. 0.01” (0.25 mm)
Label roll diameter
Max. 8” (203.2 mm) with 3″ (76.2 mm) core
Max. 6” (152.4 mm) with 1.5″ (38.1 mm) core
Max. 5″ (127 mm) with 1″ (25.4 mm) core
Core diameter Min. 1 ” (25.4 mm) – Max. 3″ (76.2 mm)

Ribbon
Types Wax, wax/resin, resin
Length Max. 1476’ (450 m)
Width Min. 1.18” (30 mm) – Max. 4.33” (110 mm)
Ribbon roll
diameter 3” (76.2 mm)
Core diameter 1” (25.4 mm)

Printer Language
EZPL, GEPL, GZPL auto switch

Software
Label design software
GoLabel (for EZPL only)
Driver Windows 2000, XP, Vista, Windows 7, 8.1 and 10 , Windows Server 2003 & 2008? MAC? Linux
DLL Win CE, .NET, Andriod, Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Windows 10

Resident Fonts
Bitmap Fronts : 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90`b0, 180`b0, 270`b0 rotatable, single characters 90`b0, 180`b0, 270`b0 rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
TTF Fonts (Bold / Italic / Underline ). 0`b0,90`b0, 180`b0, 270`b0 rotatable

Download Fonts
Bitmap Fonts 90`b0, 180`b0, 270`b0 rotatable, single characters 90`b0, 180`b0, 270`b0 rotatable
Asian Fonts 16×16, 24×24. Traditional Chinese (BIG5), Simplified Chinese(GB2312), Japanese (SJIS), Korean (KSX1001)
90`b0, 180`b0, 270`b0 rotatable and 8 times expandable in horizontal and vertical directions
TTF Fonts TTF Fonts (Bold / Italic / Underline ). 0`b0,90`b0, 180`b0, 270`b0 rotatable

Barcodes
1D Bar Codes
China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN8, EAN13, EAN 8/13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2of5 (I 2 of 5), Interleaved 2 of 5 with Shipping Bearer Bars, ISBT – 128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Random Weight, Standard 2 of 5, Telepen, UPCA, UPCE, UPCA and UPCE with EAN 2 or 5 digit extension, UCC 128, UCC/EAN128 KMart
2D Bar Codes Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39

Code Pages
Codepage 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode UTF8?UTF16BE?UTF16LE

Graphics
Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software

Interfaces
• USB 2.0 (BType)
• Serial port: RS232 (DB9)
• IEEE 802.3 10/100 BaseTx Ethernet port (RJ45)
• USB Host (AType)

Control Panel
• Color TFT LCD with navigation button
• 1 Power on/standby button with green color LED backlight
• 1 Calibration button at rear panel
• 1 Control key : FEED / PAUSE / CANCEL with dual color LED backlight: Ready (Green); Error (Red)

Power
Auto Switching 100240V AC, 5060Hz

Real Time Clock
Standard

Environment
Operation temperature 41`b0F to 104`b0F (5`b0C to 40`b0C)
Storage temperature 4`b0F to 140`b0F (20`b0C to 60`b0C)
