Introduction

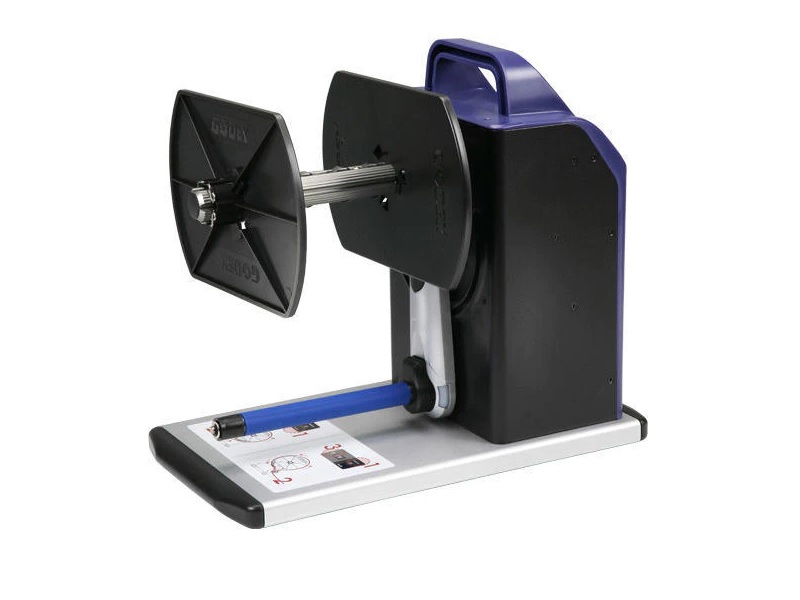

The Rewinder Everyone Can Use. The T10 rewinder has an idler arm that can be positioned to rewind labels from either side of the printer. Depending on the user’s requirements, the T10 can rewind “inside or outside” label rolls.
Feature
Can be used with all Godex`s printers.
Supports inside and outside label rewinding.
Stylish appearance plus a rugged design for long term reliability
Colored LED indicator provides rewinder operation status
Support three Core Size: 1” (25.2 mm – 25.6 mm), 1.5” (40 mm – 40.6 mm) and 3″ (76 mm – 76.6 mm); Core and coreless kits included.
Specification
Paper Width Max. 120 mm (4.72”)
Rewind Speed Auto mode: 14 IPS (max)
Fixed: Coreless 5.4IPS / 1 inch Roll: 6.3IPS
Label Roll Diameter Max. O.D. 203.2 mm (8”)
Core Diameter Coreless
I.D. 1” (25.2 25.6 mm)
I.D. 1.5”x2 (37.4 38 & 40 40.6 mm)
I.D. 3” (76 76.6 mm)
Label Roll Weight 5 Kg (11 lbs)
Rewinding Label Inside / Label Outside
Motor Hybrid Motor
Power 100 240VAC 24W, 24V Adapter
Environment Storage: 4`b0F to 140`b0F (20`b0C to 60`b0C)
Operation: 41`b0F to 104`b0F (5`b0C to 40`b0C)
Humidity 10 85% (noncondensing RH)
Agency Approvals CE, FCC Class A
Dimension Length: 13.7” (349 mm)
Height: 11.9” (303 mm)
Width: 7.1” (180 mm)
Weight 11 lbs (5 Kg), excluding consumables
