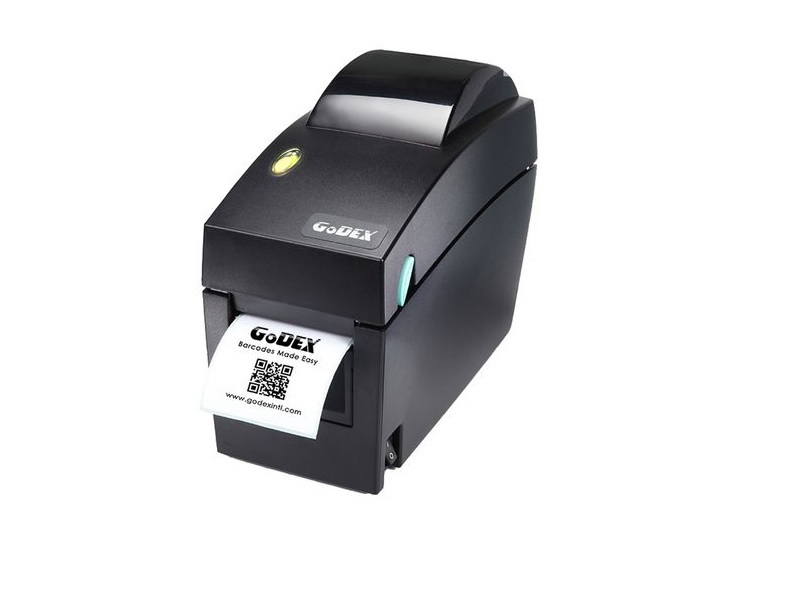

GODEX DIRECT THERMAL DESKTOP PRINTER

The GoDEX DT2x is ultralight, compact for best space utilization and support multiple communication ports; they are effective and multitasking for printing retail, warehouses, logistic & transportation, health care labels and tags.

16MB SDRAM and 4 MB Flash memoryincluding 2 MB useravailable memory storage for downloadable objects
Print speed: Up to 7″/177 mm per second
Supports Ethernet, Serial and USB ports
Enhanced label feeding mechanism and instant label detection
Free GoLabel label design software
Print Method Direct Thermal
Resolution 203 dpi (8 dots/mm)
Print Speed 7 IPS (177 mm/s)
Print Width 2.12” (54 mm)
Print Length Min. 0.16” (4 mm); Max. 68” (1727 mm)
Processor 32 Bit RISC CPU
Memory Flash: 4 MB Flash (2 MB for user storage)
SDRAM: 16MB
Sensor Type Fixed transmissive sensor and reflective sensor, central aligned
Media Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: Min. 0.6” (15 mm) – Max. 2.36” (60 mm)
Thickness: Min. 0.003” (0.06 mm) – Max. 0.008” (0.20 mm)
Label Roll Diameter: Max. 5” (127 mm)
Core Diameter: 1” (25.4 mm), 1.5” (38.1mm)
Printer Language EZPL, GEPL, GZPL auto switch
Software Label Design Software: GoLabel (for EZPL only)
Driver: MAC, Linux, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1
DLL: Win CE, .NET, Andriod, Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1
Resident Fonts Bitmap Fronts : 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90`b0, 180`b0, 270`b0 rotatable, single characters 90`b0, 180`b0, 270`b0 rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
TTF Fonts (Bold / Italic / Underline ). 0`b0,90`b0, 180`b0, 270`b0 rotatable
Download Fonts Bitmap Fonts: Bitmap fonts 90`b0, 180`b0, 270`b0 rotatable, single characters 90`b0, 180`b0, 270`b0 rotatable
Asian Fonts: 90`b0, 180`b0, 270`b0 rotatable and 8 times expandable in horizontal and vertical directions
TTF Fonts: 90`b0, 180`b0, 270`b0 rotatable
Barcodes 1D Bar codes: Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN128 KMart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5, Logmars, Code 11, Code 49 and Cadablock
2D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code.
Code Pages CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode UTF8`a1`a2UTF16BE`a1`a2UTF16LE
Graphics Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Interfaces USB 2.0
Serial port: RS232 (DB9)
IEEE 802.3 10/100BaseTx Ethemet port (RJ45)
Control Panel One Tricolor LED : Power (Green, Orange and Red)
Function Key : FEED
Real Time Clock Standard
Power Auto Switching 100240VAC, 5060Hz.
Environment Operation Temperature: 41`b0F to 104`b0F (5`b0C to 40`b0C)
Storage Temperature : 4`b0F to 122`b0F (20`b0C to 50`b0C)
Humidity Operation: 3085%, noncondensing.
Storage: 1090%, noncondensing.
Agency Approvals CE (EMC), FCC Class A, CB, CCC, cUL
